Lonseal

LONPLATE® II

See full product details and suggested applications below.

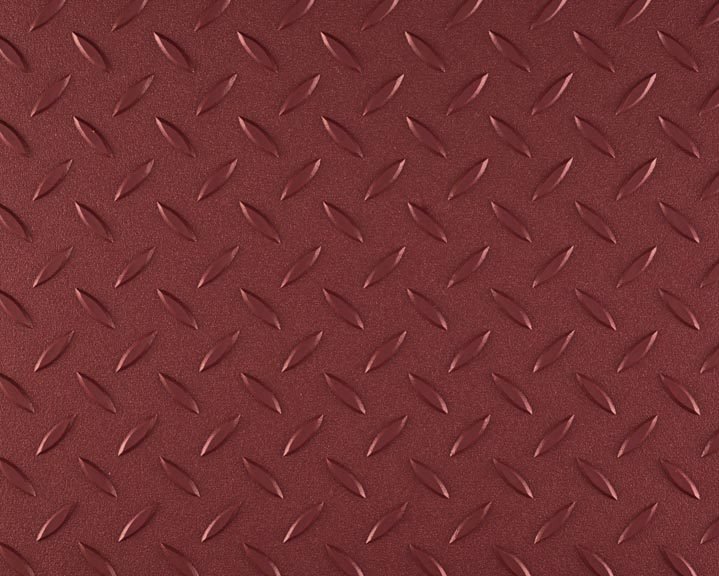

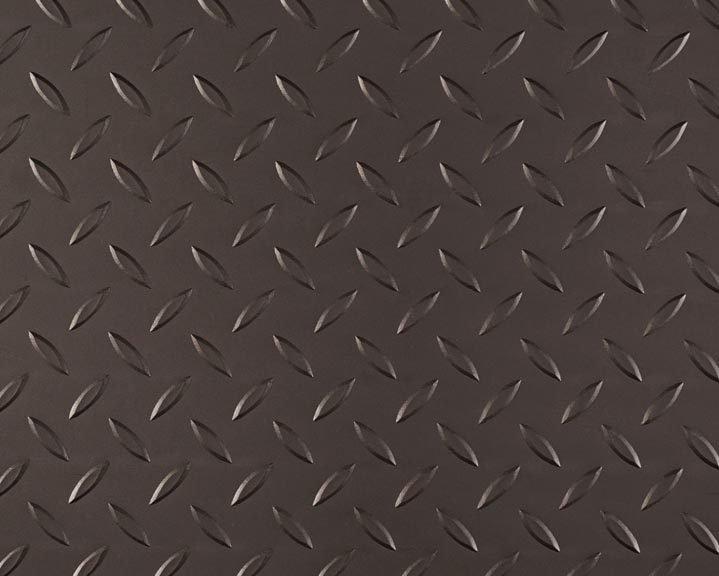

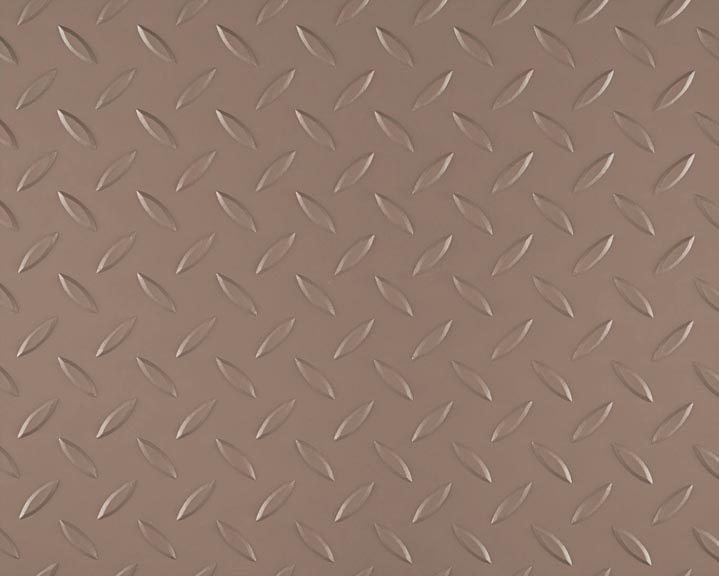

Click on swatch images for enlarged high-resolution versions.

MEETS FMVSS 302:
49 CFR §571.302 Flammability of Interior Materials

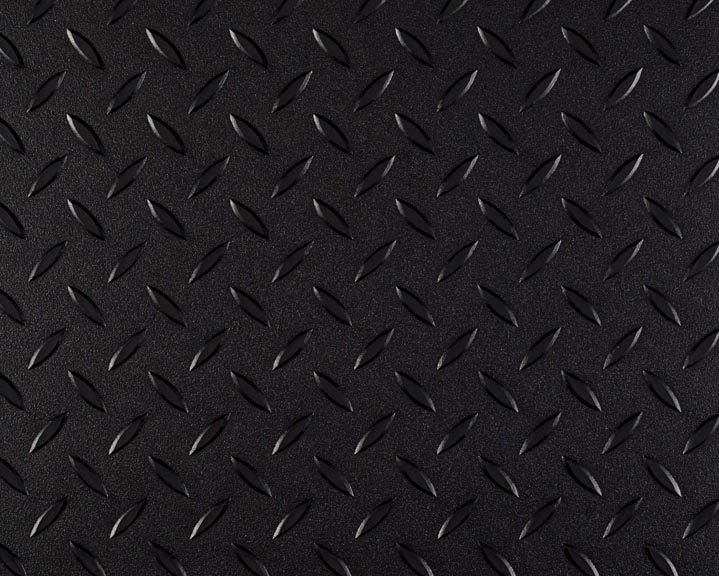

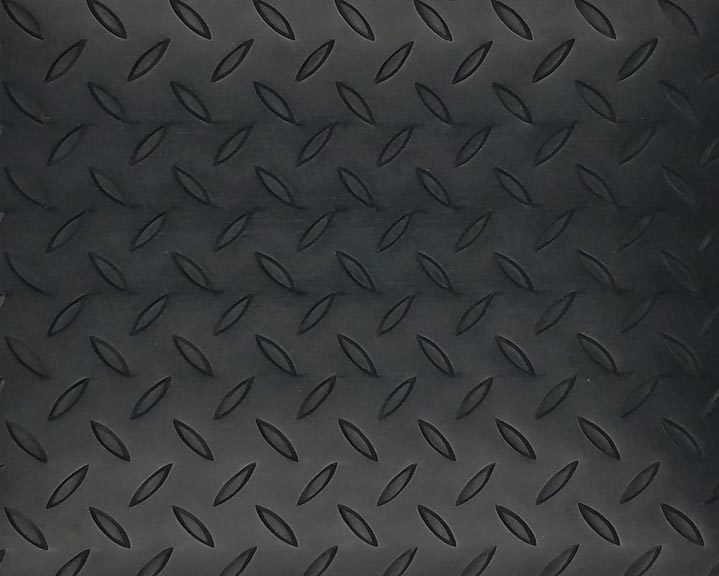

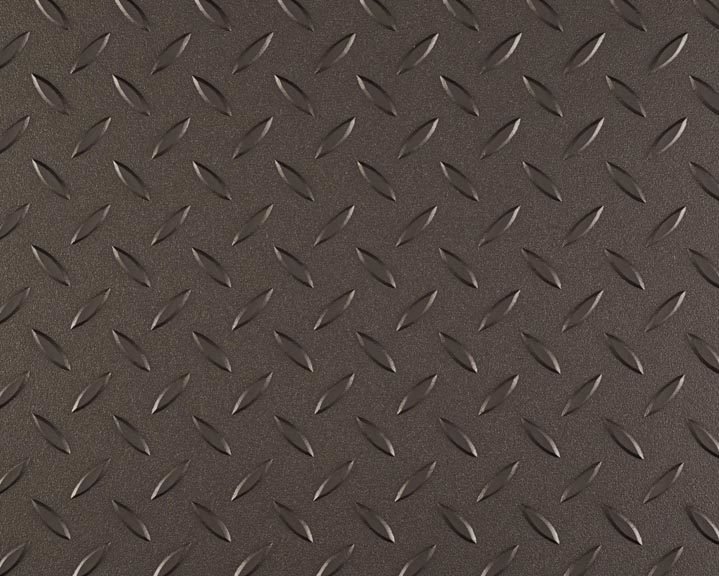

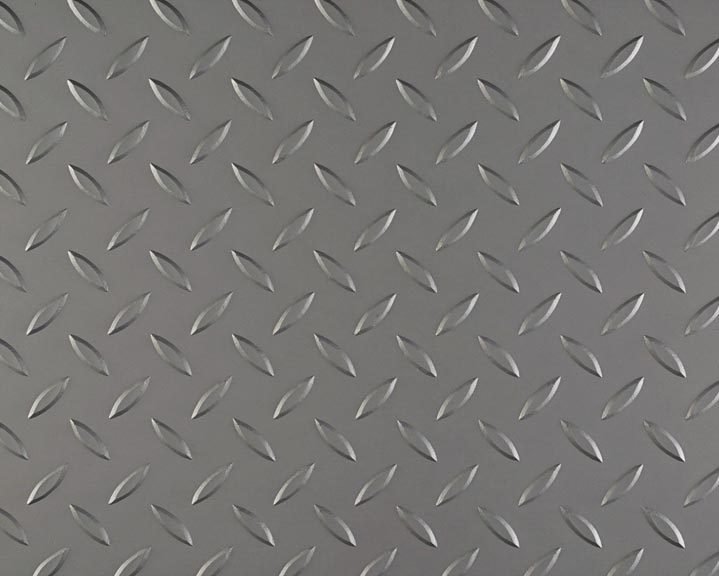

*Please note that P421 Mica, P424TX Gunpowder and P443TXM Midnight are available in both 6 ft. (1.8 m) and 8 ft. (2.4 m) rolls (8 ft. rolls are thinner at 2.5 mm thick). All other colors are available in 6 ft. (1.8 m) rolls only, unless custom ordered.

Every bit as tough as the original, but with smaller embossing and wider spacing, LONPLATE II offers a similar steel-plate pattern that shows an industrial design.

PRODUCT INFO (data shown is nominal):
Roll Width: 6 ft. (1.8 m) or 8 ft. (2.4 m)
Roll Length: 60 ft. (18.3 m)
Overall Thickness 6 ft.: 0.120 in. (3.0 mm)
Overall Thickness 8 ft.: 0.100 in. (2.5 mm)
Wear Layer Thickness: 0.040 in. (1.0 mm)
Weight 6 ft.: 0.8 lbs./sq. ft. (3.8 kg/m²)
Weight 8 ft.: 0.6 lbs./sq. ft. (2.8 kg/m²)

ASTM F1303 CLASSIFICATION: Type I, Grade 1, Class B, Commercial Use

CERTIFIED: FloorScore^®

MEETS FMVSS 302: 49 CFR §571.302 Flammability of Interior Materials

EXCLUSIVE LONSEAL^® FORMULATIONS:
GreenAir^®
GreenMedic^®

LEEDv4/4.1 CONTRIBUTION Building & Construction Interiors:
Environmental Product Declarations Option 1
Sourcing of Raw Materials Option 2
Low-Emitting Materials
Recycled Content

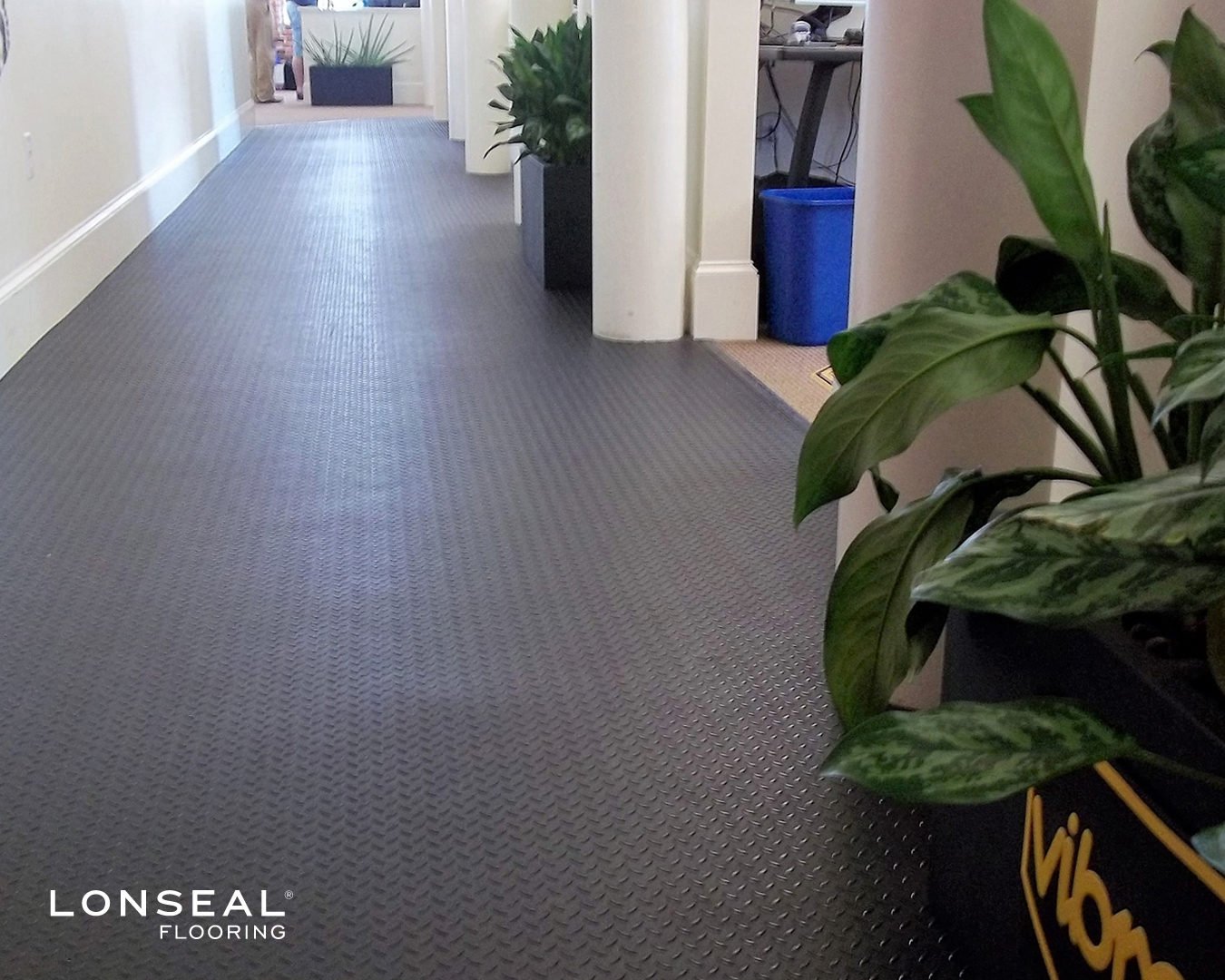

SUGGESTED APPLICATIONS:

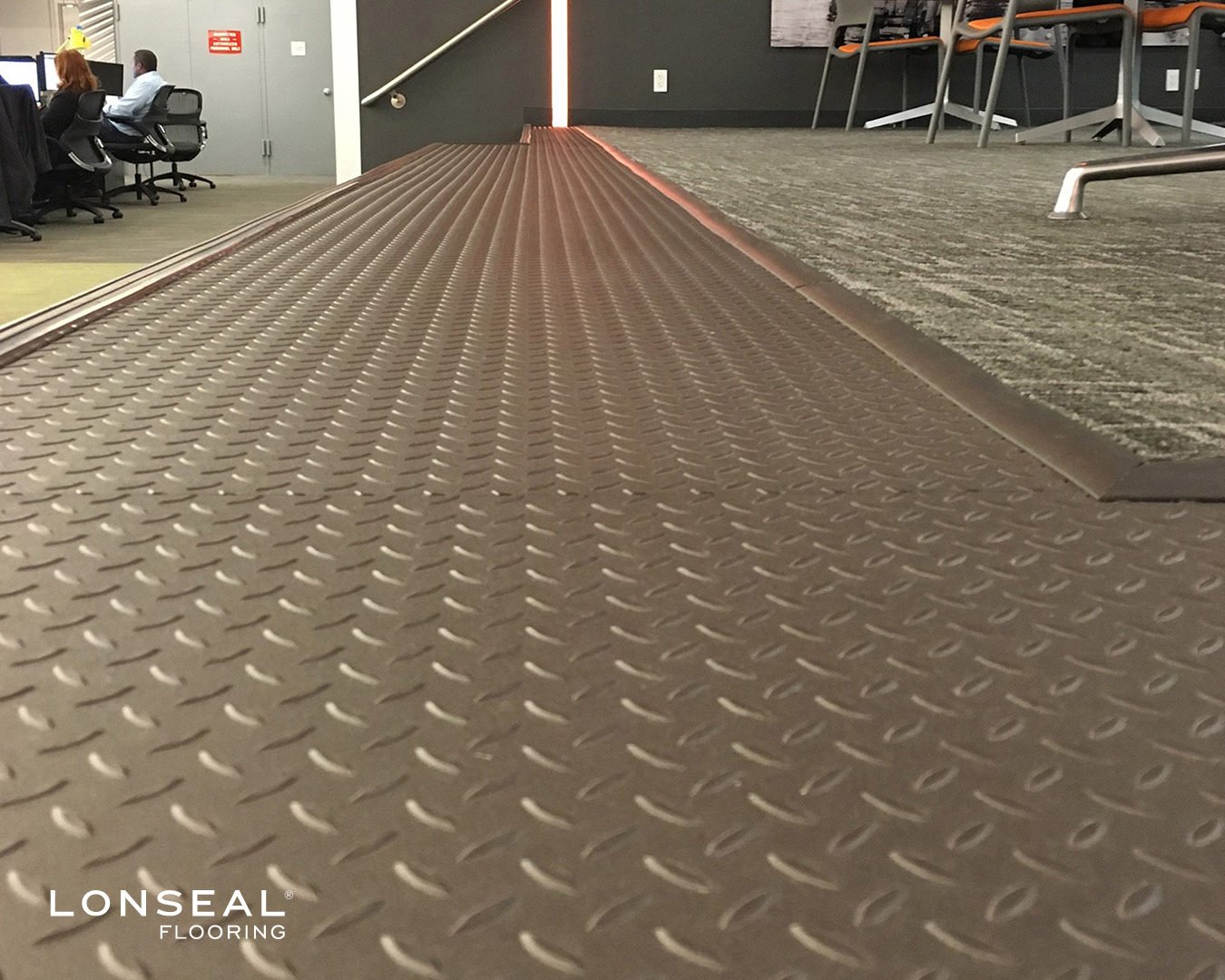

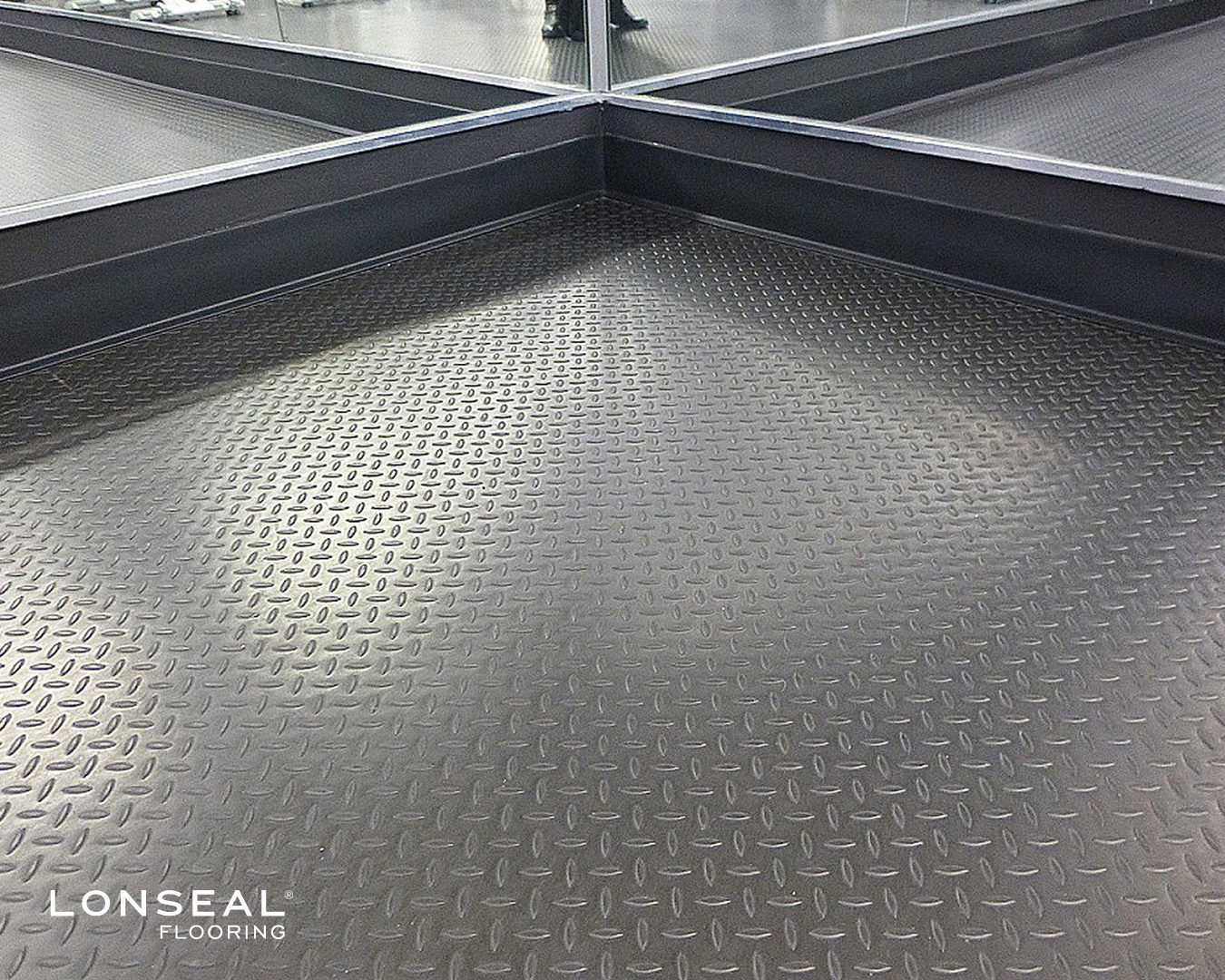

Corporate & Education

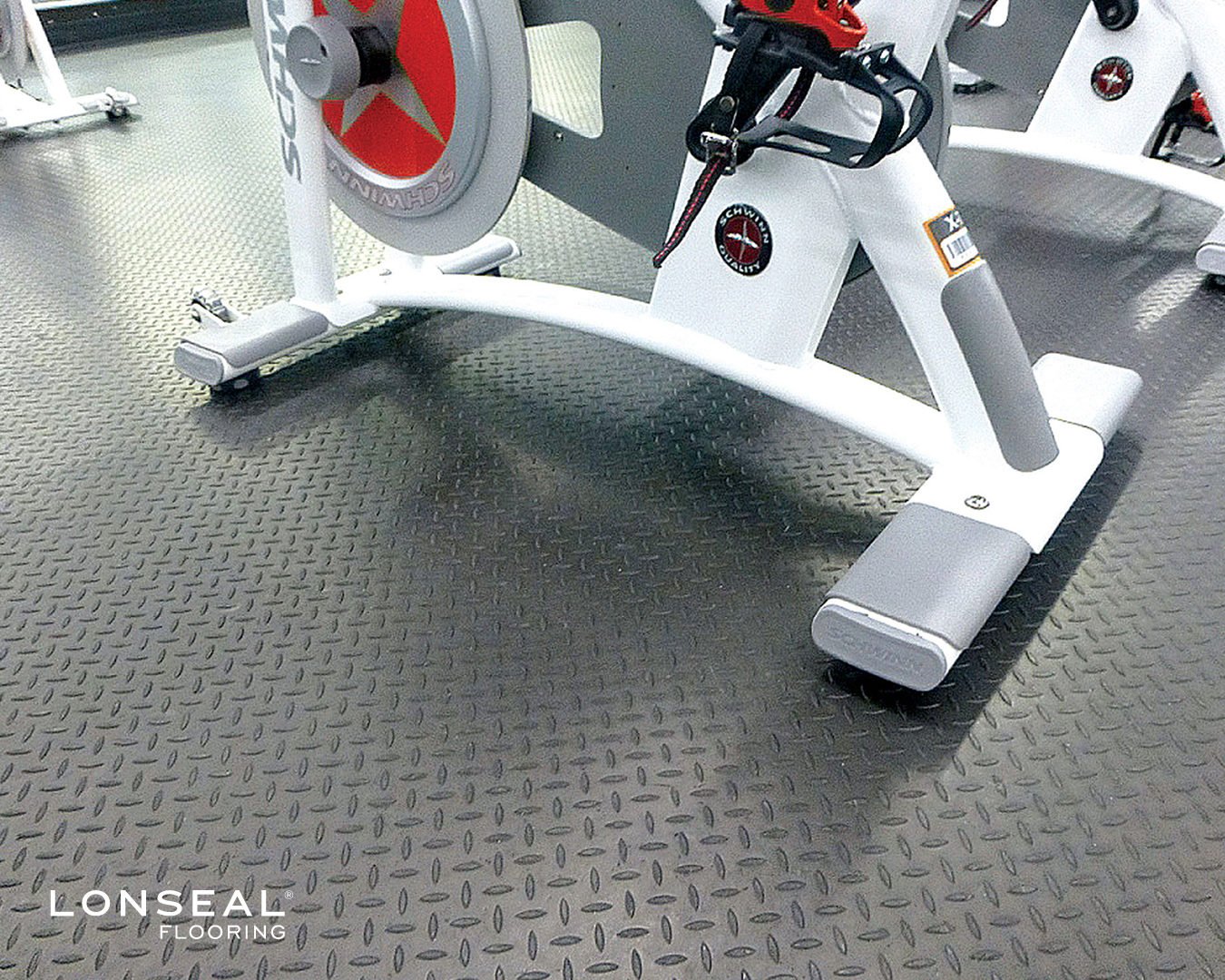

Fitness
Retail & Hospitality
Displays & Fixtures
Exhibits & Entertainment
Aircraft

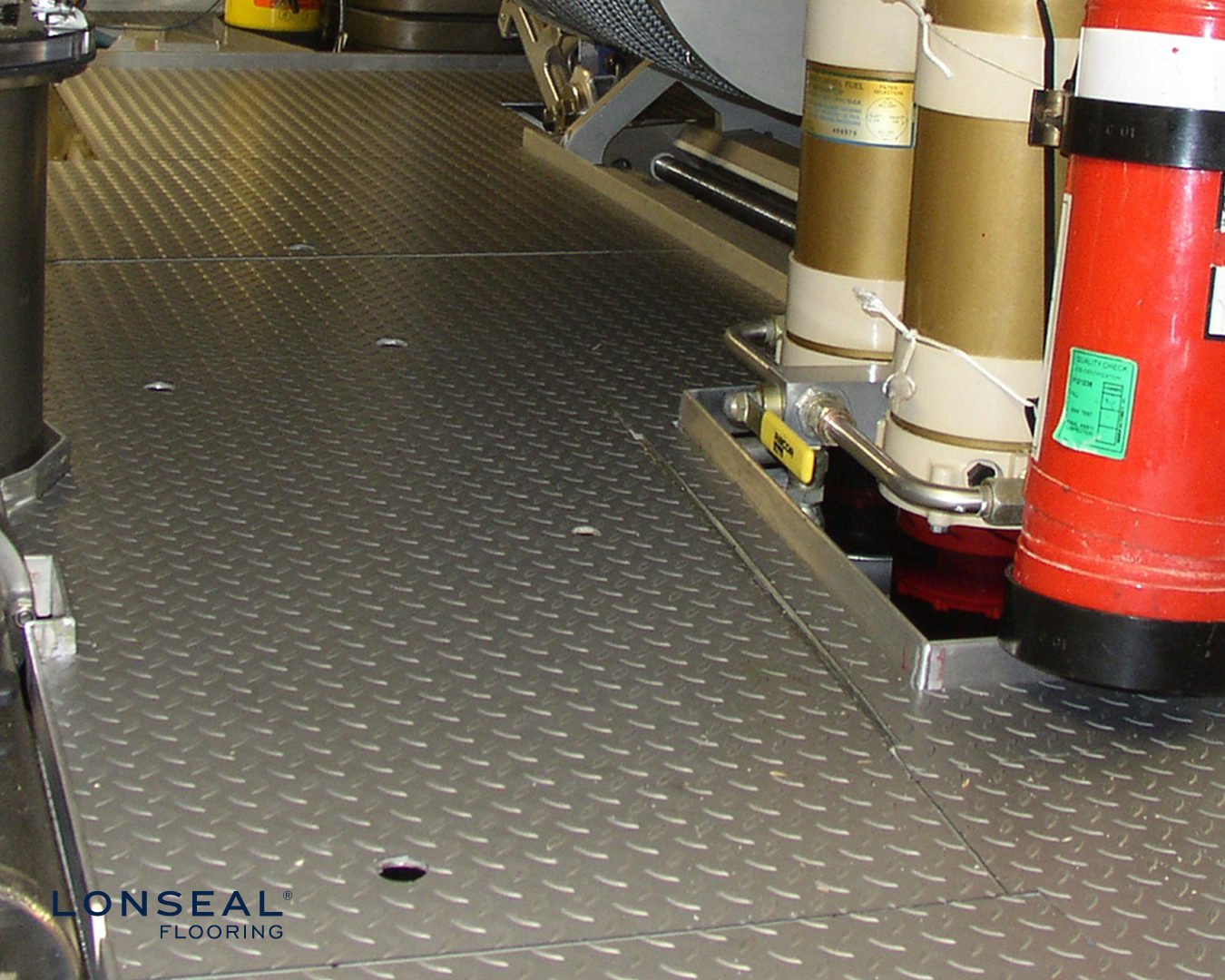

Marine
Military

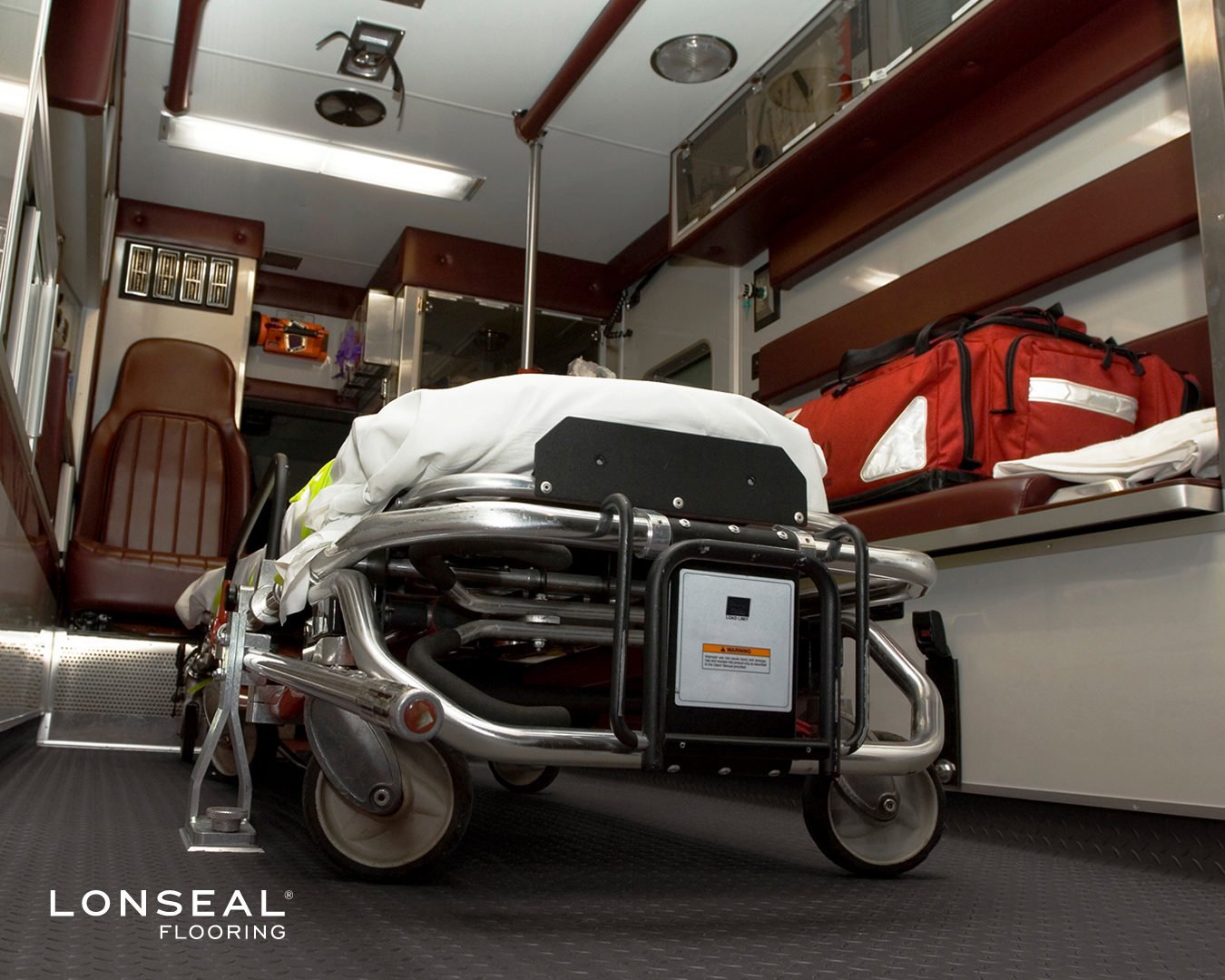

Specialty Vehicles

Pattern	DIAMOND,SOLID
Finish	EMBOSSED
Width	6 ft. (72 in.) (1.8 m),8 ft. (96 in.) (2.4 m)
Specs	RECYCLED CONTENT,ANTIMICROBIAL,FLOORSCORE,LOW VOC,CONTRIBUTES TO LEED V4/4.1,ASTM F1303 CLASSIFIED,FMVSS 302,FAA-12 Sec Vertical Flammability,FAA-Factor of Sliding Friction,CUSTOM IMO USCG FLOORING
